Real-time Staff Monitoring

The RaySafe i3 real time dosimetry system provides immediate insights about radiation exposure, helping medical staff and physicians quickly evaluate and take action to more effectively use radiation reduction measures.

Since interventional staff have higher radiation exposure than most medical professions due to scattered radiation, real time dosimetry using the RaySafe i3 is a top choice for easily observing, minimizing, and managing radiation exposure without being distracted from the task at hand.

Eager to know more?

Contact us for information about how your radiation exposure can be significantly reduced.

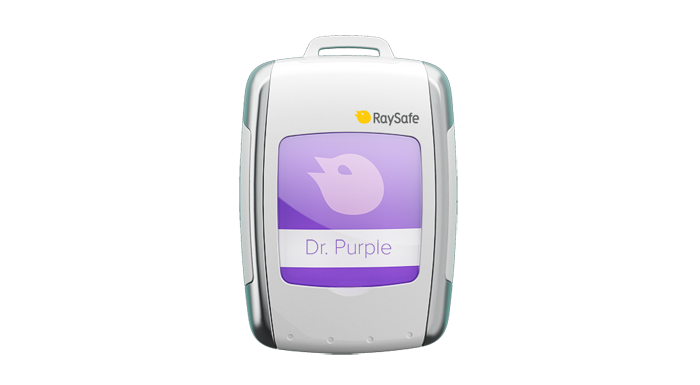

i3 Dosimeter


The RaySafe real-time radiation dosimeter measures and records radiation every second. Data is transferred wirelessly to the Real-time Hub. The dosimeter requires minimal maintenance and can be personalized by removing its window and changing color insets.

i3 Dosimeter real-time display

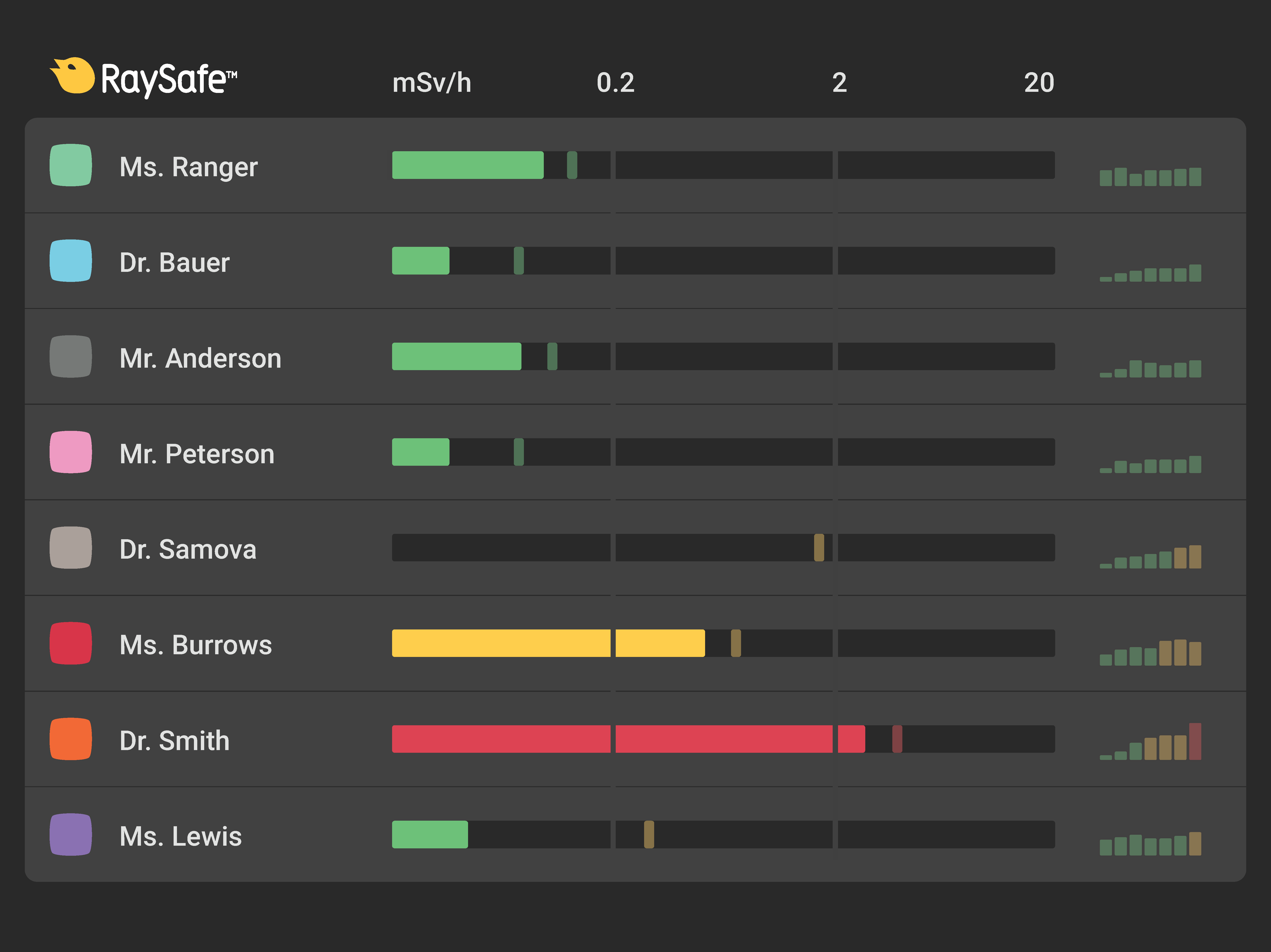

Visual Feedback

The RaySafe i3 reveals radiation exposure in real-time using easy-to-read, color-coded bar graphs displayed on the included dedicated display. Green, yellow, and red bars indicate the dose rate for up to eight individuals simultaneously. Instant feedback empowers medical staff to learn and adapt their behavior to minimize unnecessary exposure

Doseviewer display


Measurements are stored for post-procedure analysis in DoseViewer, facilitating continued learning and enabling comparisons over time between labs and between users. For hospitals using multiple i3 systems, advanced analysis, reporting and archiving of dose information is managed through RaySafe Dose Manager.

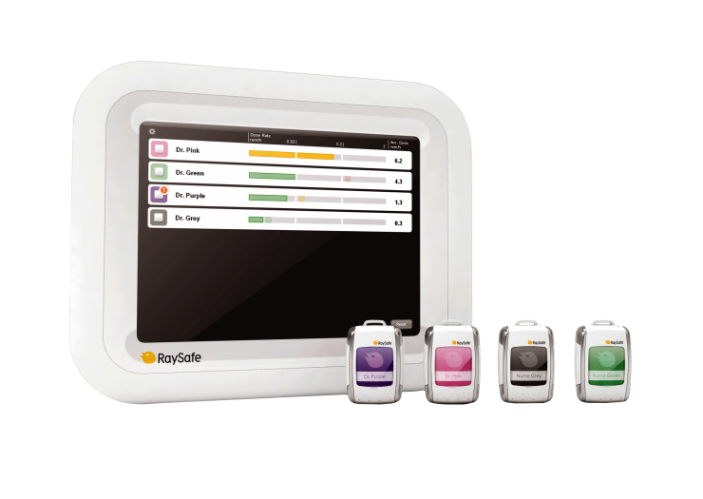

i3 with stand-alone display

RaySafe i3 with Stand-alone Display

Real-time dose rate indication, shown on dedicated display unit.


RaySafe Real-time Dosimeter

RaySafe Real-time Display

RaySafe Dose Viewer

RaySafe Dose Manager

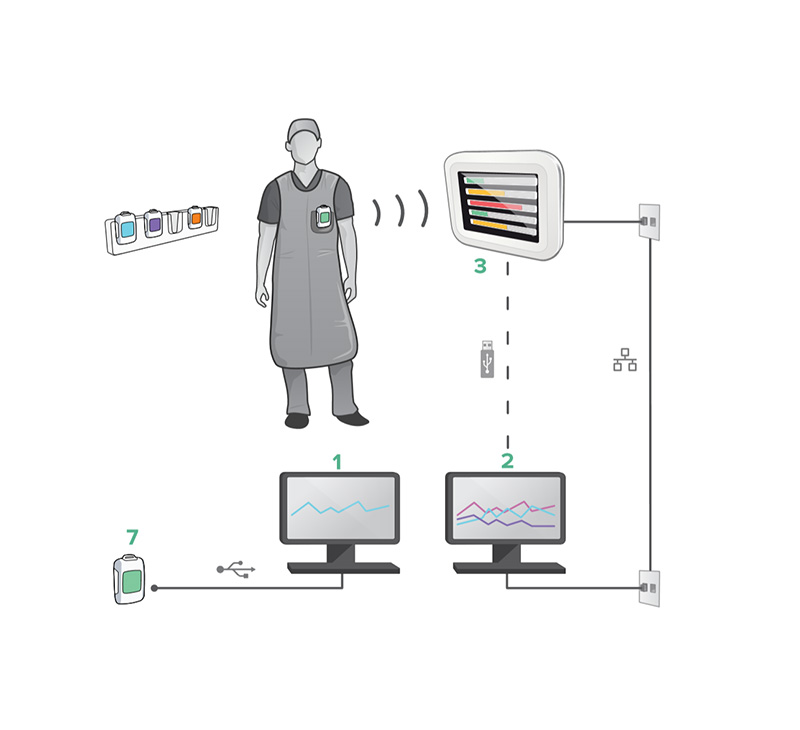

The RaySafe i3 real-time dosimetry system offers the following:


  • Wireless data transfer from the RaySafe real-time radiation dosimeter to the display.
  • USB data transfer from the dosimeter to the DoseViewer software.
  • The dosimeter has a replaceable battery, which means that longevity depends solely on wear and tear.
  • No interference from cell phone signals has been observed during heavy testing
  • Automatic sleep mode. Only active dosimeters will populate the screen, regardless of where the inactive units are stored

ALARA: As Low As Reasonably Achievable

Understanding its Importance to Employee Health and Department Operations

Learn More

LANDAUER Now Offering Real-time Dosimetry Powered by RaySafe i3

In this video, John Williams, RaySafe Business Manager, gives an overview of the latest generation of the real-time dosimetry family. The system includes RaySafe’s brand new i3 Real-time Dosimeter.

"The improvement in radiation protection has been more than dramatic at the URMC. There is no substitute for a constant and real-time reminder of the dose being received."

Labib H. Syed, M.D., M.P.H. | University of Rochester Medical Center
